| Brand Name : | SevenPower |
| Model Number : | SP65N |
| Certification : | CE |
| Delivery Time : | 25days |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
50Hz 60Hz Silent Type Natural Gas Generator Set With Combined Heat
and Power System 60kw 65kw
Scope Of Supply
a) Gas engine with all accessories
b) Alternator
c) Base or Soundproof canopy
d) Heat recovery system
e) Shock absorber
f) Gas train
g) Air filter
h) Control panel
i) Circuit breaker
j) High-efficient silencer
After-sale Service
- Installation and maintenance guide
- Free debugging
- Training the operator
- Supply the spare parts during the whole service life.
- Overseas service
Main Specifications
| Model | SP65N | |
| fuel | — | Natural Gas |
| marks | — | Synchro Generator Set |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 81/65 | ||
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 3-5 |
| dimension (soundproof type) | mm*mm*mm | 2500*1400*1600 |
| net weight | kgs | 2000 |
| NG consumption | m3/kW.h | 0.34 |
| standard type-db(A)@7m | — | 58 |
| Certificate | — | CE |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| mixer | — | Venturi type |
| gas filter | — | Madas |
| zero regulator | — | Kromschroeder |
| solenoid valve | — | Kromschroeder |
| gas pressure gauge | — | Dungs |
| Lambda auto control | — | Yes |
| catalyst converter | — | Optional |
| MCB | — | ABB |
| GCB | — | ABB |
| Engine | Engine model | — | MAN MT05 |
| Engine type | — | 4cylinders,4stroke,water-coolled | |
| RPM | — | 1500 | |
| Compression Ratio | — | 11.0 | |
| Displacement | — | 4.58L | |
| Oil capacity | — | 15L | |
| Charging voltage | — | 24V(DC) | |
| Charging current | — | 5A(DC) | |
| Starting system | — | Electic-start |
| Alternator | model | — | Meccalte |
| phase | — | 3 phase 4 wires | |
| insulation system | — | class H | |
| protection | — | IP23 | |
| Cooling Type | — | air cooled |
For more information about the 65kw Genset, please consult with
your sales representative.Thanks.

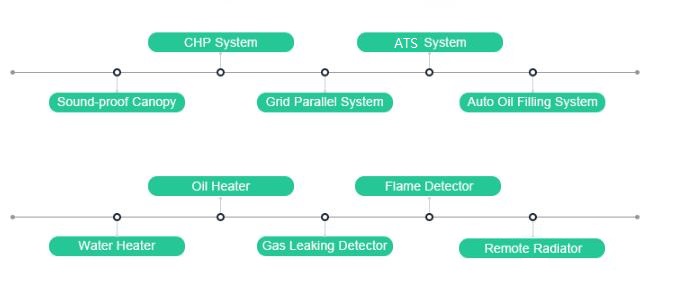

Optional Configurations
|
|
