| Brand Name : | SevenPower |
| Model Number : | SP6B |
| Certification : | CE |
| Delivery Time : | 25days |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |

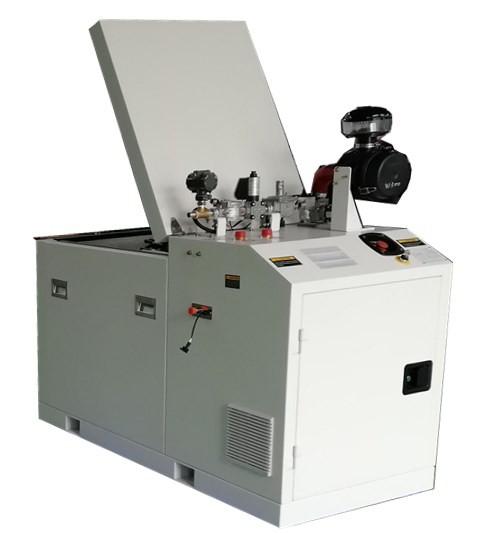

50Hz 220V Clean Energy Sustainable Cogeneration Sustainable Power
Supply Biogas CHP 6KW Single Phase CE Approved
Biogas is well known as clean energy, biogas CHP solved the problem
of livestock waste, reduce greenhouse gas emissions, generate both
electricity and heat, with high overall efficiency to achieve
maximum utilization of resources.
Using a CHP or electrical appliance in wet conditions, such as rain
or snow, or near a pool or sprinkler system, or when your hands are
wet, could result in electrocution. Keep the CHP dry.
Characters
Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Comprehensive heat insulation to minimize heat loss.
CHP inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.
Biogas Requirements
| Composition | Content |
| CH4 | ≥55% |
| fluctuations value of biogas in pipeline | <0.2Kpa |
| hydrogen | <10% |
| sulfide, including hydrogen sulphide | <200mg/m3 |
| chlorine fluorine compounds,mainly chlorofluoromethane | <15mg/m3 |
| silicium | <0.7mg/m3 |
| ammonia | <15mg/m3 |
| liquid oil and hydrocarbons | <50mg/m3 |
| particles | <5μm Impurity content<30mg/m3 |
CHP Main Specifications
| Item | Model | SP6B | |
| fuel | — | Biogas | |
| marks | — | Synchro CHP | |
| CHP | electrical output(KWe) | kVA/kWe | Continuous Power |
| 7.5/6 | |||
| thermal output(KWe) | kWt | 14.3 | |
| electrical efficiency | % | 25.37% | |
| thermal efficiency | % | 60.47% | |
| overall efficiency | % | 85.84% | |
| frequency | Hz | 50 | |
| voltage | V | 220 | |
| gas inlet pressure | kPa | 1-10 | |
| dimension (soundproof type) | mm*mm*mm | 1530*750*940 | |
| net weight | kg | 580 | |
| Biogas consumption | m3/kW.h | 0.550 | |
| Biogas consumption for one hours | m3/h | 3.30 | |
| db(A)@7m | — | 57 | |
| Certificate | — | CE | |
| water-water heat exchanger | — | SWEP | |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel | |
| ignition system | — | Impco | |
| speed governor | Woodward | ||
| gas filter | — | Madas | |
| zero regulator | — | Maxitrol | |
| MCB | — | ABB | |
| GCB | — | ABB | |
| Controller | ComAp/CZ | ||
| Engine | Engine model | — | SP9EW |
| Engine type | — | 4 cylinders,4stroke,16valves,water-coolled | |
| RPM | — | 1500 | |
| Compression Ratio | — | 11 | |
| Displacement | — | 1.5L | |
| Oil capacity | — | 3.9L | |
| Charging voltage | — | 12V(DC) | |
| Charging current | — | 6A(DC) | |
| Starting system | — | Electic-start | |
| Alternator | model | — | Meccalte |
| phase | — | Single phase | |
| insulation system | — | class H | |
| protection | — | IP23 | |
| Cooling Type | air cooled |
For more information about each CHP, please consult with your sales
representative.Thanks.
