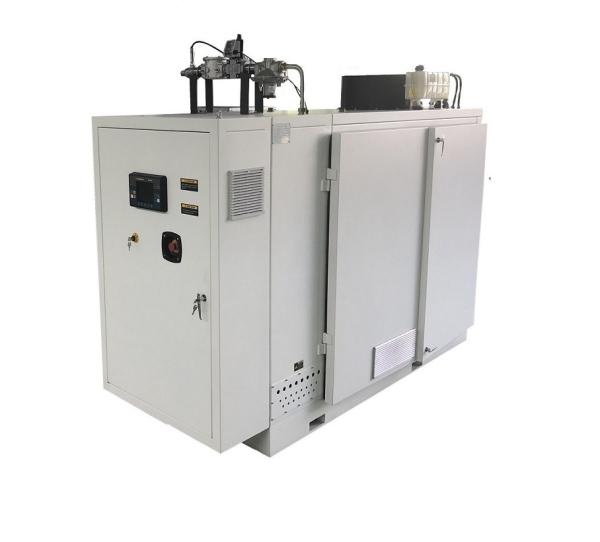

Chinese Product 220V / 110V 70KW Natural Gas CHP 60Hz RPM1800 Natural Gas Generator Set With Heat Recovery System
Continuous Power 70KW/24hours per day, 7days a week
- CE approved.
- Powered by gas engine / Man engine Made In China / Man technology
- Optional at Meccalte / Leroy Somer alternator / Protection level IP23 / Insulation Level Class H
- Controller ComAp(Available at different control demands).
- Emission is available on request.
COOLING SYSTEM CONSTITUENT PARTS
SevenPower standard CHP units all adopt closed loop circulation, liquid - liquid heat exchange cooling method.The closed loop cooling system consists of the following parts:
- expansion water pot
- water pump
- engine internal water channel
- thermostat
- liquid - liquid heat exchanger
- corrugated metal pipes
- water cooled exhaust pipe
Main Specifications
| Model | SP70N | |
| fuel | — | Natural Gas |
| marks | — | Synchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 88/70 | ||
| thermal output(KWt) | kWt | 121.5 |
| electrical efficiency | % | 31.7% |
| thermal efficiency | % | 55% |
| overall efficiency | % | 86.7% |
| frequency | Hz | 60 |
| voltage | V | 220/127 |
| gas inlet pressure | kPa | 3-5 |
| dimension (soundproof type) | mm*mm*mm | 2800*1400*1500 |
| net weight | kgs | 2000 |
| NG consumption | m3/kW.h | 0.32 |
| standard type-db(A)@7m | — | 58 |
| Certificate | — | CE |
| water-water heat exchanger | — | SWEP |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| mixer | — | Venturi type |
| gas filter | — | Madas |
| zero regulator | — | Kromschroeder |
| solenoid valve | — | Kromschroeder |
| gas pressure gauge | — | Dungs |
| Lambda auto control | — | Yes |
| catalyst converter | — | Optional |
| MCB | — | ABB |
| GCB | — | ABB |
CHP On Site Picture(Europe)
For more information about the 70kw CHP, please consult with your sales representative.Thanks.
