200KW 250KVA 50Hz Natural Gas Cogen High Overall Efficiency With Auto Control

Pre-sale Service

- Provide specifications consultation, customized design proposal.

- Welcome to visit our factory for inspection.

- Check and see the products running

- Train operators

Production

- Keep customers posted on the progress of production.

- Systematical and strict testing before delivering to customers

- Testing

• Including 0%,25%,50%, 75%, 100%, 110% load
• Emergency stop
• All protections(high temperature, low oil pressure, over speed, over load, over frequency and phase failure etc.)
• Electrical and thermal power output
• Synchronization

Electrical Power: 200kw

CHP Main Specifications

Certification: CE

Frequency: 50Hz

Voltage: 400/230V

Gas Inlet: 3-5Kpa

Electrical efficiency: 33.8%

Thermal efficiency: 50.2%

Overall efficiency: 84%

Alternator: Meccalte

Controller: ComAp,Deepsea and SmartGen is available on request.

Speed governor: Woodward

Ignition system: Impco

With Lambda auto control.

NOx and CO below 500mg/Nm3,Optional.

Optional at Off-grid and Mains parallel.

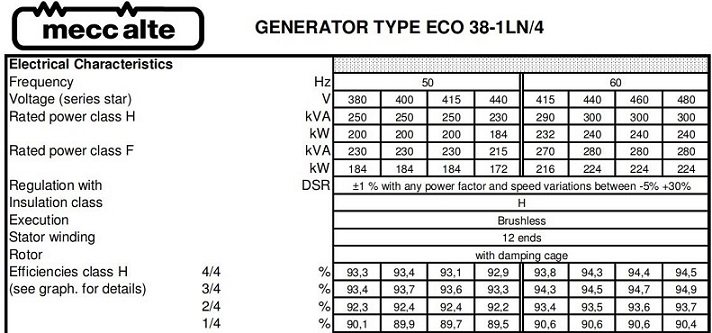

Alternator Main Specifications

Why SevenPower?

- Environmentally friendly design

- Long time research and development and testing for high reliability
- Comprehensive heat insulation to minimize heat losses

- Water-to-water heat exchanger/SWEP, self-developed exhaust heat exchanger which is made of full stainless steel #316 instead of universal carbon steel which get rusty easily.

- CHP inner pipeline is made of full stainless steel.

- Maximum lower the noise level
- Maintenance friendly thanks to easy access
- Long service intervals
- Suitable for mains parallelling

- CE approved

SevenPower Natural Gas CHP 200KW On Site Picture(Europe)

For more information about the 200KW CHP, please consult with your sales representative.Thanks.

Our Packing

Our Hannover Exhibition

Our Showroom In Germany

Our Customers' Visiting

Chengdu Sevenpower Generating Equipment Co., Ltd is an energy saving and environmental protection high-tech enterprise specialized in gas generator,gas CHP,CCHP and diesel generator set,hybrid power system under the registered trademark WeTeam.

Factory is located in Chengdu city, the technology and financial center of China southwest area. With more than 10 years' experience in this field,SevenPower has been a comprehensive enterprise which integrated research and development, production and sales.

Sevenpower has set up a complete quality control system, and all products are certified with CE certificate.SevenPower products applications are where there is a demand for electricity only or both electricity and hot water or heating or cooling.Products of Sevenpower have been sold nationwide and exported to more than 30 countries like Germany,Italy,Spain, the UK, Australia, Canada, Russia, the Middle East, Thailand and so on. Sevenpower has set up after-service office in Germany and Italy.Based on equality and mutual benefit, Sevenpower has established stable collaborative relations with several famous international corporations.
