8KW 10KVA Micro CHP Unit Low Emissions Low Noise Super Silent BHKW
50Hz
Characters
- CE approved.
- Environmentally friendly design.
- Long time R&D and testing ensure high reliability.
- Comprehensive heat insulation to minimize heat loss.
- CHP inner pipelines are made of full stainless steel material.
- Maximum lower the noise level, super silent with noise level
56dB(A)@1m only!
- Maintenance friendly thanks to easy access.
Main Specifications:
| Item | Model | SP8N | |
| fuel | — | Natural Gas | |
| marks | — | Synchro CHP | |
| CHP | electrical output(KWe) | kVA/kWe | Continuous Power |
| 10/8 | |||
| thermal output(KWt) | kWt | 19.5 | |
| electrical efficiency | % | 25.60% | |
| thermal efficiency | % | 62.60% | |
| overall efficiency | % | 88.20% | |
| frequency | Hz | 50 | |
| voltage | V | 400/230 | |
| gas inlet pressure | kPa | 3-5 | |
| dimension (soundproof type) | mm*mm*mm | 1530*750*940 | |
| net weight | kgs | 580 | |
| NG consumption | m3/kW.h | 0.396 | |
| standard type-db(A)@1m | — | 56 | |
| Certificate | — | CE | |
| water-water heat exchanger | — | SWEP | |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel | |
| ignition system | — | Impco | |
| speed governor | — | Woodward | |
| mixer | — | Venturi type | |
| gas filter | — | Madas | |
| zero regulator | — | Maxitrol | |
| solenoid valve | — | JL | |
| gas pressure gauge | — | Dungs | |
| Lambda auto control | — | YES | |
| catalyst converter | — | With | |
| NOx and CO | — | below 50mg/Nm3 @5% O2 | |
| MCB | — | ABB | |
| GCB | — | ABB | |
| Controller | ComAp IC | ||
| Engine | Engine model | — | SP9EW |
| Engine type | — | 4 cylinders,4stroke,16valves,water-coolled | |
| RPM | — | 1500 | |
| Compression Ratio | — | 11 | |
| Displacement | — | 1.5L | |
| Oil capacity | — | 3.9L | |
| Charging voltage | — | 12V(DC) | |
| Charging current | — | 6A(DC) | |
| Starting system | — | Electic-start | |
| Alternator | model | — | Meccalte |
| phase | — | 3 phase 4 wires | |
| insulation system | — | class H | |
| protection | — | IP23 | |
| Cooling Type | — | air cooled |

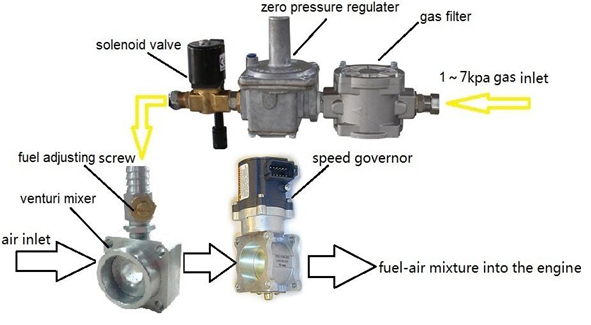

Gas Train

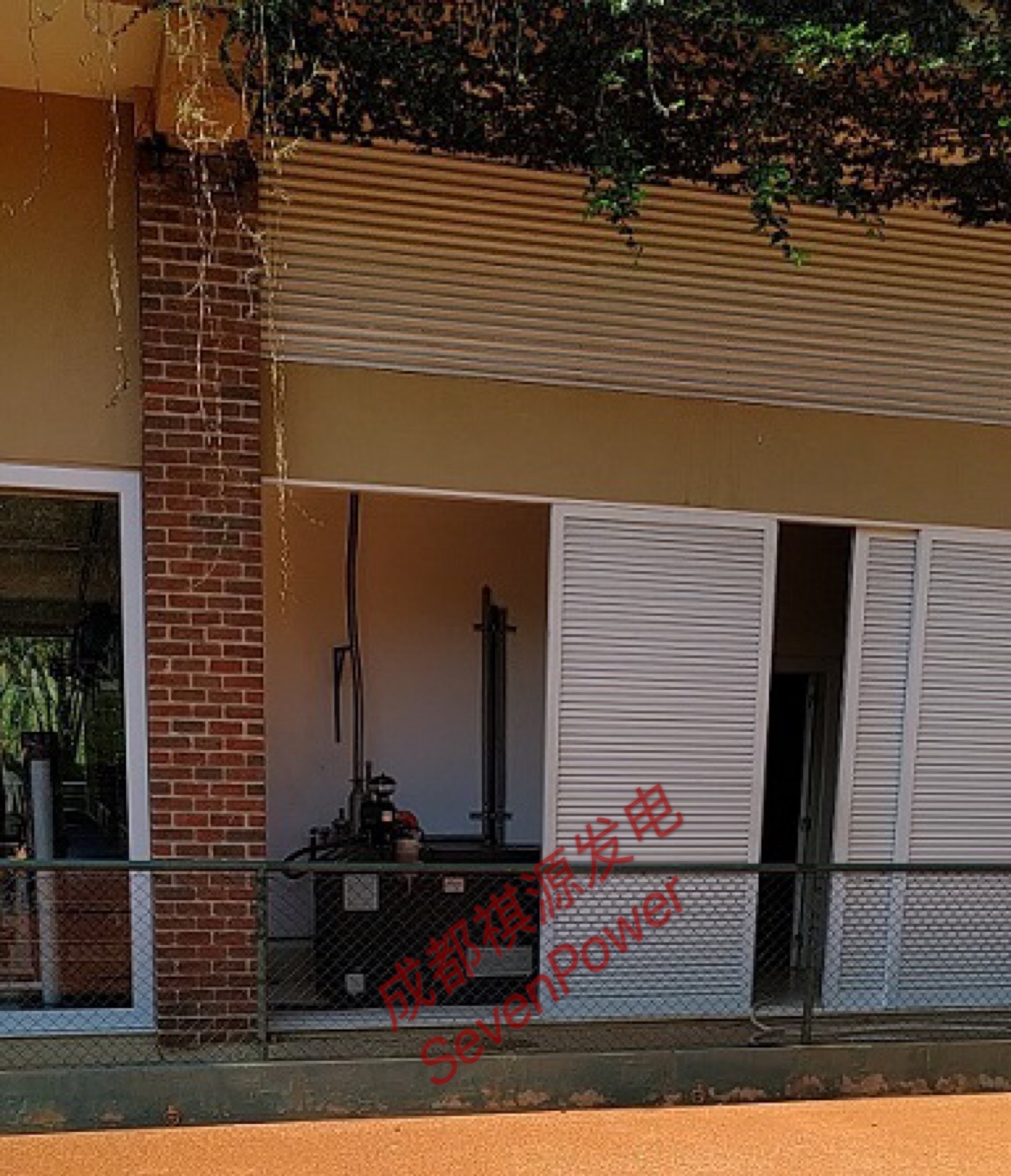

Micro CHP On Site Picture
For more information about each CHP, please consult with your sales
representative.Thanks.
