| Brand Name : | SevenPower |
| Model Number : | SP40B |
| Certification : | CE |
| Delivery Time : | 25days |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |

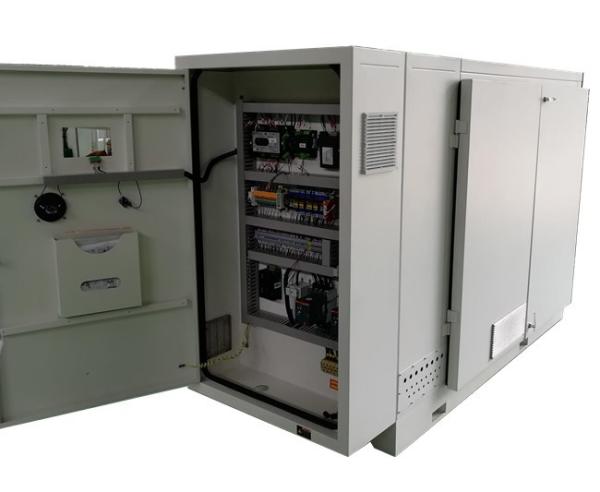

50Hz 380V / 220V Biogas Cogeneration 40KW 50KVA Biogas CHP Green
Energy CE Approved
Characters
Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Comprehensive heat insulation to minimize heat loss.
CHP inner pipelines are made of full stainless steel material.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.
Main Specifications
| Item | Model | SP40B | |
| fuel | — | Biogas | |
| marks | — | Synchro CHP | |
| CHP | electrical output(KWe) | kVA/kWe | Continuous Power |
| 50/40 | |||
| thermal output(KWe) | kWt | 78 | |
| electrical efficiency | % | 27.9% | |
| thermal efficiency | % | 54.42% | |
| overall efficiency | % | 82.32% | |
| frequency | Hz | 50 | |
| voltage | V | 400/230 | |
| gas inlet pressure | kPa | 1-10 | |
| dimension (soundproof type) | mm*mm*mm | 2500*1400*1600 | |
| net weight | kg | 2000 | |
| Biogas consumption | m3/kW.h | 0.5 | |
| Biogas consumption for one hours | m3/h | 20 | |
| db(A)@7m | — | 58 | |
| Certificate | — | CE | |
| water-water heat exchanger | — | SWEP | |
| water-exhaust heat exchanger | — | made of stainless steel | |
| ignition system | — | Impco | |
| speed governor | — | Woodward | |
| gas filter | — | Madas | |
| zero regulator | — | Kromschroeder | |
| MCB | — | ABB | |
| GCB | — | ABB | |
| Controller | ComAp/CZ | ||
| Engine | Engine model | — | SP-6BTA |
| Engine type | — | 6 cylinders,4stroke,water-coolled | |
| RPM | — | 1500 | |
| Compression Ratio | — | 10.5 | |
| Displacement | — | 5.9L | |
| Oil capacity | — | 17L | |
| Charging voltage | — | 24V(DC) | |
| Charging current | — | 5A(DC) | |
| Starting system | — | Electic-start | |
| Alternator | model | — | Meccalte |
| phase | — | 3 phase 4 wires | |
| insulation system | — | class H | |
| protection | — | IP23 | |
| Cooling Type | — | air cooled |
For more information about each CHP, please consult with your sales
representative.Thanks.
