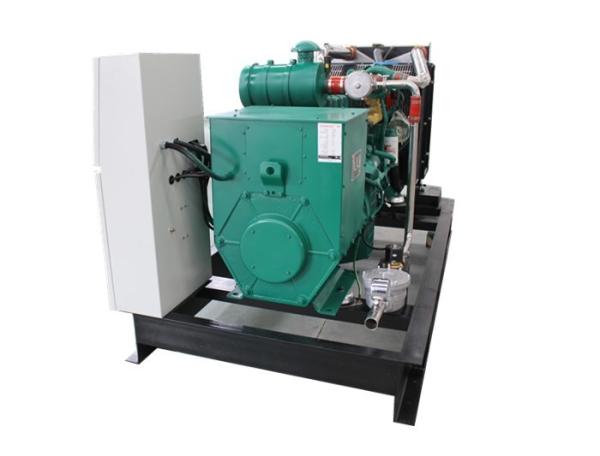

    Weatherproof 50HZ 230V Biogas CHP , Biogas Fuel CHP Heat And Power BHKW 25KW 30KVA

    Ask Lasest Price
    Brand Name : SevenPower
    Model Number : SP25B
    Certification : CE
    Delivery Time : 25days
    Price : Negotiable
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Weatherproof 50HZ 230V Biogas CHP , Biogas Fuel CHP Heat And Power BHKW 25KW 30KVA

    CE Approved 50HZ 230V Biogas Cogeneration 25KW 30KVA CE Certified Sustainable Power Plant Weatherproof


    The Cogen may be required to operate for long periods of time without an operator on hand to monitor such engine conditions as coolant temperature, oil pressure or rpm. For that reason, the engine has several devices designed to protect it against potentially damaging conditions by automatically shutting down the unit when the oil pressure is too low, the coolant temperature is too high, the coolant level is too low, or the engine is running too fast.


    Characters


    Design & Research team:Team with rich experience more than 10years.

    Feature : Specially designed valves,crankshaft,camshaft,pistons,ignition system and combustion chamber for gas engine,

    In use CHPs : all over the world, German, UK, Spain, Czech Republic, Italy, Canada, Indonisia, Maylasia, etc.

    Rapid response to your needs : answer within 36 hours.

    Standard : All of our models are certified with CE.


    Main Specifications


    ItemModelSP25B
    fuelBiogas
    marksSynchro CHP
    CHPelectrical output(KWe)kVA/kWeContinuous Power
    31/25
    thermal output(KWe)kWt47
    electrical efficiency%27.36%
    thermal efficiency%51.44%
    overall efficiency%78.8%
    frequencyHz50
    voltageV400/230
    gas inlet pressurekPa1-10
    dimension (soundproof type)mm*mm*mm2100*1200*1500
    net weightkg1100
    Biogas consumptionm3/kW.h0.51
    Biogas consumption for one hoursm3/h12.75
    db(A)@7m58
    CertificateCE
    water-water heat exchangerSWEP
    water-exhaust heat exchangerdesigned by our own factory/made of full stainless steel
    ignition systemImpco
    speed governorWoodward
    gas filterMadas
    zero regulatorKromschroeder
    MCBABB
    GCBABB
    ControllerComAp/CZ
    EngineEngine modelSP-4BT
    Engine type4 cylinders,4stroke,water-coolled
    RPM1500
    Compression Ratio11.0
    Displacement3.9L
    Oil capacity9.5L
    Charging voltage24V(DC)
    Charging current3A(DC)
    Starting systemElectic-start
    AlternatormodelMeccalte
    phase3 phase 4 wires
    insulation systemclass H
    protectionIP23
    Cooling Typeair cooled

    For more information about each CHP, please consult with your sales representative.Thanks.
