| Brand Name : | SevenPower |
| Model Number : | SP20L |
| Certification : | CE |
| Delivery Time : | 25days |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |

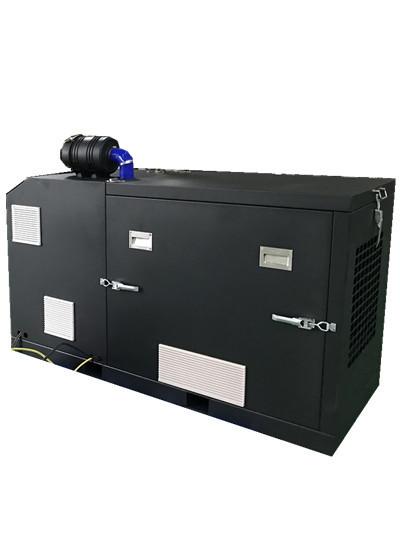

20KW 25KVA LPG Generator Set Liquefied Petroleum Gas Generator 4Cylinders Water Cooled LPG Genset CE Verified
Working Conditions:
Ambient temperature: 0℃~+40℃
Relative humidity:<90%(20℃)
Altitude: ≤1000m.
Gas Requirements
C3H8>80%
H2S content≤ 100ppm. NH3 content≤ 50ppm. Silicon content ≤ 5 mg/Nm3
Impurities content≤30mg/Nm3, size≤5μm,
No free water.
Main Specifications and Characters
| Model | SP20L | |
| fuel | — | LPG |
| marks | — | Synchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 30/20 | ||
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 1-10 |
| dimension (soundproof type) | mm*mm*mm | 1800*780*1020 |
| net weight | kg | 700 |
| LPG consumption | kgs/kW.h | 0.279 |
| db(A)@7m | — | 58 |
| Certificate | — | CE |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| gas filter | — | Impco |
| zero regulator | — | Impco |
| water pump | — | Wilo |
| MCB | — | ABB |
| GCB | — | ABB |
| Controller | ComAp IC | |
| Engine model | — | SP-3RZ |
| Engine type | — | 4 cylinders,4stroke,16valves,water-coolled |
| RPM | — | 1500 |
| Compression Ratio | — | 10.5 |
| Displacement | — | 2.7L |
| Oil capacity | — | 5.5L |
| Charging voltage | — | 12V(DC) |
| Charging current | — | 6A(DC) |
| Starting system | — | Electic-start |
| Alternator model | — | Meccalte |
| phase | — | 3 phase 4 wires |
| insulation system | — | class H |
| protection | — | IP23 |
| Cooling Type | air cooled |
For more information about each Generator Set, please consult with your sales representative.Thanks.
|
|
