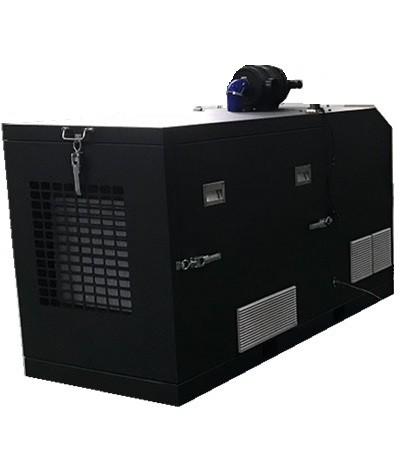

LPG Generator Set 15KW 20KVA 4Y Engine Propane Genset With Water
Cooling Alternator With CE Certificate
LPG combustion almost no carbide and dust emissions. LPG
application is more widely than other gases in the global , and the
supply is adequate, it’s easy for transportation and preservation,
convenient energy supply to remote areas, to provide more stable
fuel source for LPG CHP
Scope Of Supply
a) Gas engine with all accessories
b) Alternator
c) Base or Soundproof canopy
d) Radiator
e) Shock absorber
f) Gas train
g) Air filter
h) Control panel
i) Circuit breaker
j) High-efficient silencer
Characters
CE approved.
Environmentally friendly design.
Long time R&D and testing ensure high reliability.
Maximum lower the noise level.
Maintenance friendly thanks to easy access.
| Model | SP15N | |
| fuel | — | Natural Gas |
| marks | — | Synchro Genset |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 19/15 | ||
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 1-10 |
| Water Flow | m³/h | 2 |
| dimension (soundproof type) | mm*mm*mm | 1800*780*1020 |
| net weight | kgs | 650 |
| LPG consumption | kgs/kW.h | 0.277 |
| Certificate | — | CE |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| gas filter | — | Impco |
| zero regulator | — | Impco |
| soft start | — | ABB |
| switch | — | ABB |
| lambda control | — | Available on request |
| catalyst converter | — | Available on request |
| Controller | ComAp | |
| Engine model | — | SP-4Y |
| Engine type | — | 4 cylinders,4stroke,water-coolled |
| RPM | — | 1500 |
| Compression Ratio | — | 9.6 |
| Displacement | — | 2.237L |
| Oil capacity | — | 4.2L |
| Charging voltage | — | 12V(DC) |
| Charging current | — | 6A(DC) |
| Starting system | — | Electic-start |
| Alternator model | — | Brands available at different selections |
| phase | — | 3 phase |
| insulation system | — | class H |
| protection | — | IP23 |
| Cooling Type | — | air cooled |
For more information about each Generator Set, please consult with
your sales representative.Thanks.
