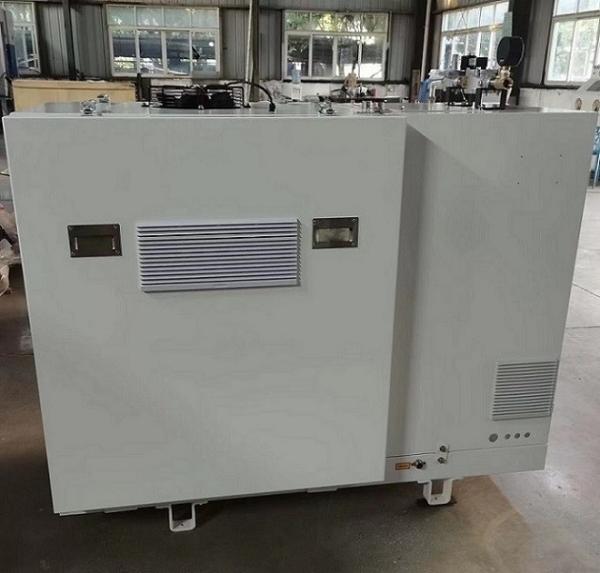

LPG Generator Set Cogenerator 20KW 25KVA Micro Generator CHP
Continuous 24hours Running
Multiple units been installed around the world
Due to the energy crisis, there's big market for LPG CHP.LPG
combustion almost no carbide and dust emissions. LPG application is
more widely than other gases in the global , and the supply is
adequate, it’s easy for transportation and preservation, convenient
energy supply to remote areas, to provide more stable fuel source
for LPG CHP
SevenPower CHPs have been sold in Europe for about 10years, our
rich experience in CHP ensure you the good quality.
Why SevenPower CHPs?
- Water cooled engine, suitable for 24hours continous running,
stable performance
- Exhaust heat exchanger made of full stainless steel
- CE approved.
- Environmentally friendly design.
- Long time R&D and testing ensure high reliability.
- Maximum lower the noise level.
- Insulation reduce the heat loss
- Maintenance friendly thanks to easy access.
LPG Micro Generator/CHP Selections
50Hz 60Hz
-8kw -10kw
-20kw -22kw
| Model | SP20L | |
| fuel | — | LPG |
| marks | — | Synchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 25/20 | ||
| thermal output(Kwt) | — | 42 |
| electrical efficiency | — | 28.3% |
| thermal efficiency | — | 59.4% |
| overall efficiency | — | 87.7% |
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 3-5 |
| Water Flow | m³/h | 2 |
| dimension (soundproof type) | mm*mm*mm | 1800*960*1170(without doors 780mm only) |
| net weight | kgs | 580 |
| LPG consumption | kgs/kW.h | 0.28 |
| Certificate | — | CE |
| water-water heat exchanger | SWEP | |
| water-exhaust heat exchanger | Made of full stainless steel | |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| gas filter | — | Impco |
| zero regulator | — | Impco |
| soft start | — | ABB |
| switch | — | ABB |
| lambda control | — | Available on request |
| catalyst converter | — | Available on request |
| Controller | ComAp | |
| Engine model | — | SP-4JB1 |
| Engine type | — | 4 cylinders,4stroke,water-coolled |
| RPM | — | 1500 |
| Compression Ratio | — | 9.5 |
| Displacement | — | 2.7L |
| Oil capacity | — | 5.5L |
| Charging voltage | — | 12V(DC) |
| Charging current | — | 6A(DC) |
| Starting system | — | Electic-start |
| Alternator model | — | Meccalte |
| phase | — | 3 phase |
| insulation system | — | class H |
| protection | — | IP23 |
| Cooling Type | — | air cooled |
For more information about the CHP, please consult with your sales
representative.Thanks.
