Super Silent Low Noise 6kw 7kw 8kw 10kva Micro CHP Cogenerator
Generator Set
We've been selling Micro CHP to Europe for around 10years, it's
widely installed in Germany, UK, Czech Republic, Italy.....So why
SevenPower?
- Fully open design, much easier for maintenance
- Super silent, low noise level 55dB(A)@1meter/Asynchro model,
58dB(A)@1meter/Synchro model
- Water cooled engine,Suitable for 24hours continuous running
- High overall efficiency
- Stable performance
- Low emissions, NOx and CO below 50mg/Nm3@5% O2.
- Multiple installations in Europe which approved the quality
2 Models for Selections
1) Asynchro model
- powered by water cooled engine+water cooled alternator
- recover heat from 4 sources, engine+alternator+exhaust+exhaust
manifold
2) Synchro model
-- powered by water cooled engine+air cooled alternator
- recover heat from 3 sources, engine+exhaust+exhaust manifold
Multiple Units Been Installed Around The World
Natural Gas Combined Heat and Power (CHP) systems offer a reliable and efficient way to generate electricity and thermal energy from a single fuel source. Our experienced team of professionals can provide technical support and services to ensure the long-term success of your CHP system.
Before installation, we can provide a wide range of services to ensure your CHP system will run optimally. Our engineers can design custom system configurations, and provide installation and testing guidance.
We provide ongoing support to ensure your CHP system is operating at peak efficiency. Our team can provide remote monitoring, troubleshooting, and maintenance services, as well as onsite training and technical support.
We also provide 24/7 emergency support to ensure your CHP system is always running smoothly. Our experienced engineers are available to answer any questions or address any issues you may have.
Specification
| Model | SP8N | |
| fuel | — | Natural Gas |
| marks | — | Synchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 10/8 | ||
| thermal output(KWt) | kWt | 19.5 |
| electrical efficiency | % | 25.6% |
| thermal efficiency | % | 62.6% |
| overall efficiency | % | 88.2% |
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 1-10 |
| Water Flow | m³/h | 2 |
| dimension (soundproof type) | mm*mm*mm | 1600*940*1170(without removable doors width 760 |
| net weight | kgs | 550 |
| NG consumption | m3/kW.h | 0.396 |
| Certificate | — | CE |
| water-water heat exchanger | — | SWEP |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel |
| ComAp | ||
| Engine model | — | SP9EW |
| Engine type | — | 4 cylinders,4stroke,16valves,water-coolled |
| RPM | — | 1500 |
| Compression Ratio | — | 11 |
| Displacement | — | 1.5L |
| Oil capacity | — | 3.9L |
| Charging voltage | — | 12V(DC) |
| Charging current | — | 6A(DC) |
| Starting system | — | Electic-start |
| model | — | Meccalte |
| phase | — | 3 phase |
| insulation system | — | class H |
| protection | — | IP23 |
| Cooling Type | — | air cooled |
For more information about each CHP, please consult with your sales
representative.Thanks.

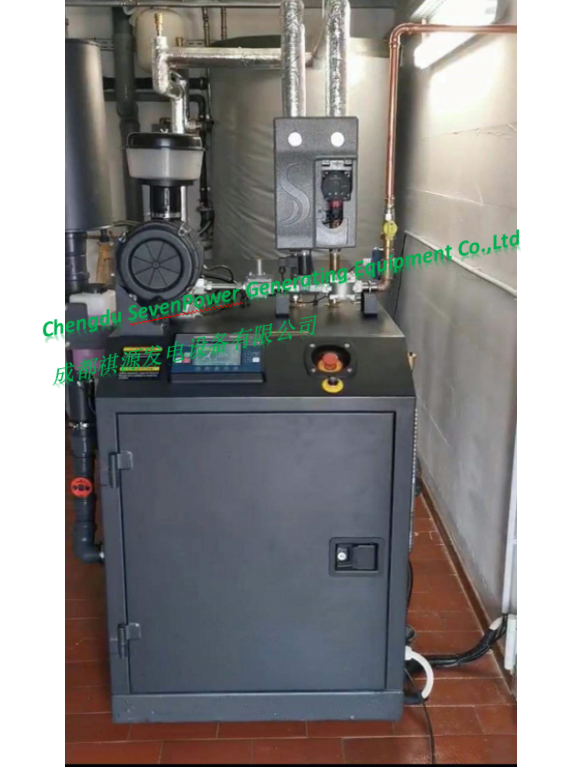

8kw CHP on Site Picture
More Information About Our Factory
Our Packing
Our Hannover Exhibition
Our Showroom In Germany
Our Customers' Visiting
|
|
