Residential Super Silent Asynchro Water Cooled 8kw 10kva 10kw
Natural Gas LPG Biogas Micro CHP Cogenerator
We are the factory specialized in gas CHP, and we've been selling
Micro CHP in Europe for 10years, it's widely installed in Germany,
UK, Czech Republic, Italy.....So why SevenPower?
CHP Specifications
| Model | SP8N | |
| fuel | — | Natural Gas |
| marks | — | Asynchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 10/8 | ||
| thermal output(KWt) | kWt | 20.4 |
| electrical efficiency | % | 25.6% |
| thermal efficiency | % | 65.3% |
| overall efficiency | % | 90.9% |
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 1-10 |
| Water Flow | m³/h | 2 |
| dimension (soundproof type) | mm*mm*mm | 1600*940*1170(without removable doors width 760 |
| net weight | kgs | 550 |
| NG consumption | m3/kW.h | 0.396 |
| Certificate | — | CE |
| water-water heat exchanger | — | SWEP |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| gas filter | — | Madas |
| zero regulator | — | Maxitrol |
| pressure gauge | — | DUNGS |
| soft start | — | ABB |
| switch | — | ABB |
| lambda control | — | with |
| catalyst converter | — | with |
| Controller | ComAp | |
| Engine model | — | SP9EW |
| Engine type | — | 4 cylinders,4stroke,16valves,water-coolled |
| RPM | — | 1500 |
| Compression Ratio | — | 11 |
| Displacement | — | 1.5L |
| Oil capacity | — | 3.9L |
| Charging voltage | — | 12V(DC) |
| Charging current | — | 6A(DC) |
| Starting system | — | Electic-start |
| Alternator | — | Asynchro |
| phase | — | 3 phase |
| insulation system | — | class H |
| protection | — | IP56 |
| Cooling Type | — | water cooled |
For more information about each CHP, please consult with your sales
representative.Thanks.

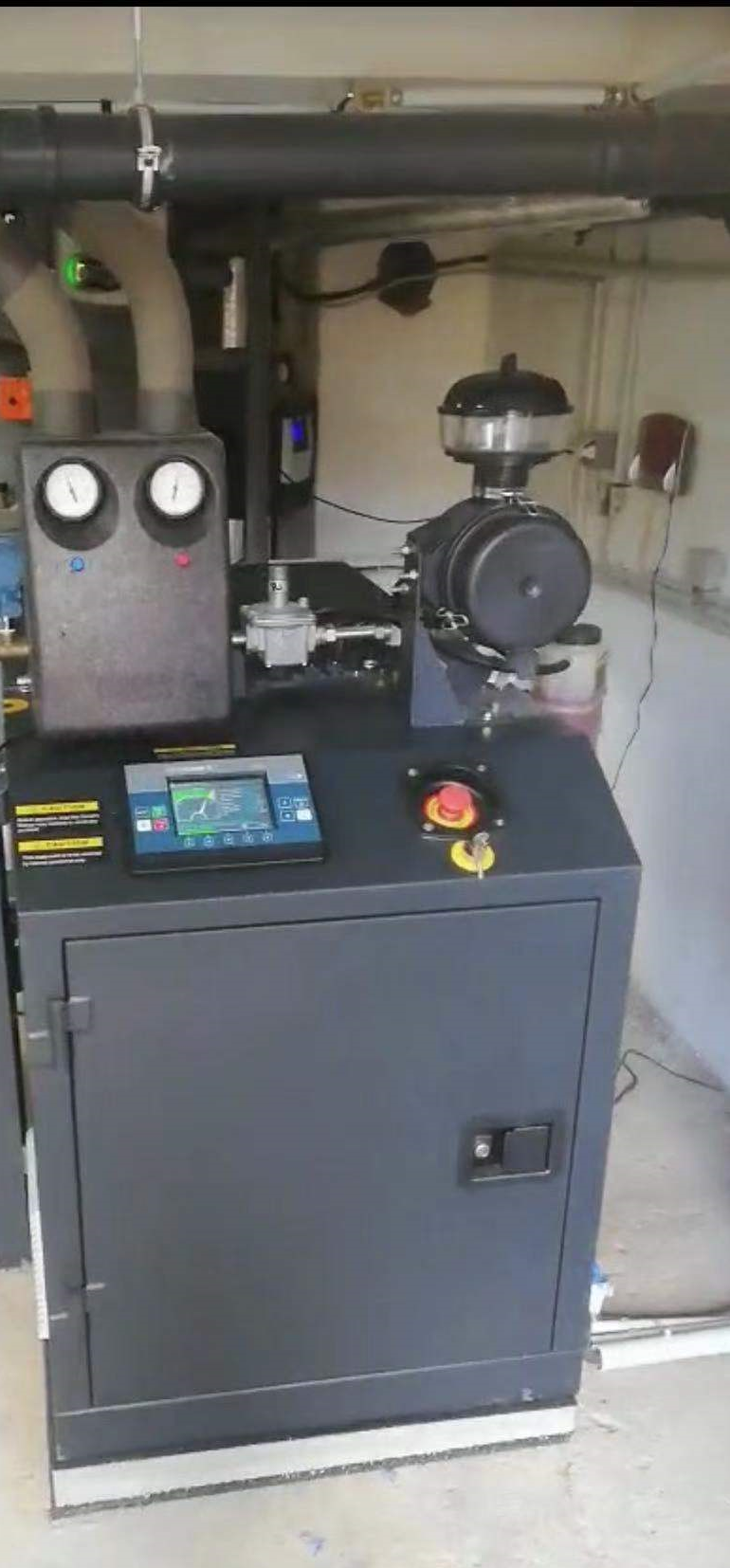

Micro CHP on Site Picture
